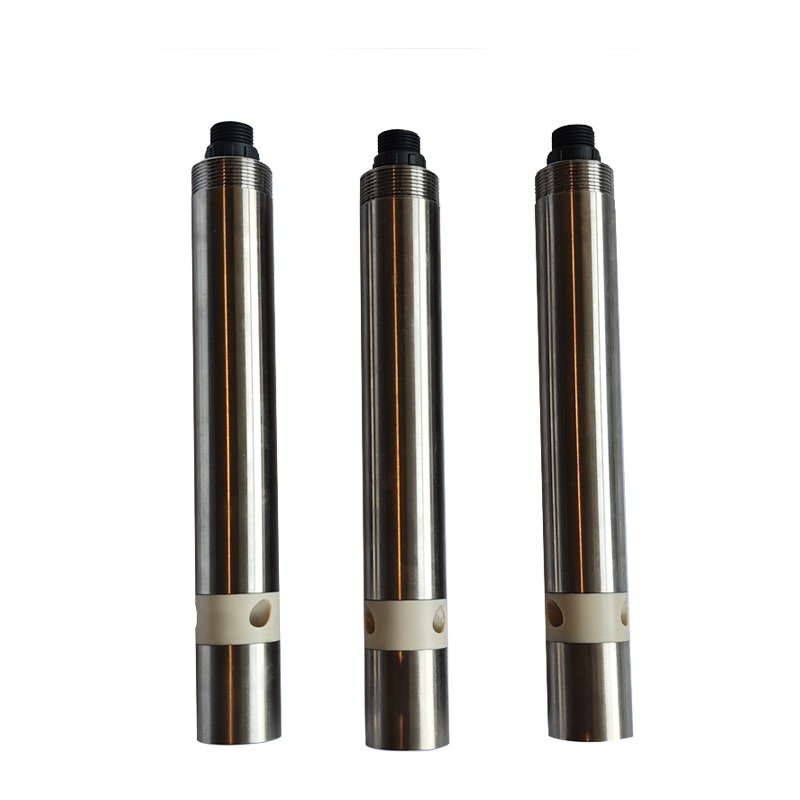

Conductivity Sensor – TDS – Salinity

Description

The Conductivity and TDS Sensor is designed for continuous, high-precision monitoring of electrical conductivity and total dissolved solids in water. Utilizing a reliable four-electrode design, it ensures accurate measurements across a wide range of concentrations. The sensor features built-in temperature compensation, digital RS-485 output, and supports MODBUS protocol, making it ideal for integration into automated monitoring systems.

Key Features:

• Dual parameter measurement: conductivity and total dissolved solids (TDS)

• RS-485 digital output with MODBUS protocol for seamless system integration

• Four-electrode technology for stable, wide-range performance

• Automatic temperature compensation for accurate readings in fluctuating environments

• Compact, IP68-rated design suitable for submersible installation

Technical Specifications:

• Measurement Range: 0–2000 μS/cm or 0–100,000 μS/cm (customizable)

• Accuracy: ±1% FS

• Resolution: 0.1 μS/cm

• TDS Conversion Factor: User-configurable (commonly 0.5–0.7)

• Temperature Range: 0–50°C

• Storage Temperature: -20–80°C

• Output Signal: RS-485, MODBUS RTU

• Power Supply: DC 5–12V, current <50mA

• Protection Rating: IP68

• Housing Material: SS316 + PEEK

• Cable Length: 5 meters standard (custom lengths available)

Applications:

• Water treatment plants

• Industrial process water

• Drinking water monitoring

• Aquaculture systems

• Surface water and environmental monitoring
