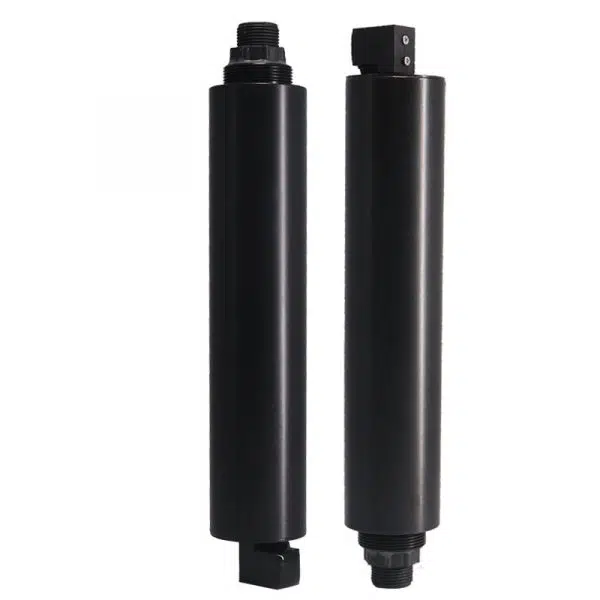

TOC / TSS Sensor

Description

The TOC/TSS Sensor is a dual-parameter solution for real-time monitoring of Total Organic Carbon (TOC) and Total Suspended Solids (TSS) in water. Using advanced optical absorbance technology, it offers fast, stable, and reagent-free measurements. Its robust design, automatic cleaning system, and MODBUS RTU compatibility make it ideal for both industrial and environmental applications.

Key Features:

• Dual measurement: TOC (organic load) and TSS (suspended particles)

• Optical absorbance technology – fast, reagent-free, and low-maintenance

• RS-485 digital output with MODBUS RTU protocol

• Integrated wiper for automatic self-cleaning

• High resistance to interference from color, turbidity, and particles

• No need for chemical reagents or consumables

Technical Specifications:

• TOC Range: 0–1000 mg/L (customizable)

• TSS Range: 0–50,000 mg/L (customizable)

• TOC Detection Limit: 0.1 mg/L

• Accuracy: ±5% of reading

• Resolution: 0.01 mg/L

• Response Time: <30 seconds

• Temperature Range: 0–50°C

• Output Signal: RS-485, MODBUS RTU

• Power Supply: DC 6–12V, <50mA

• Protection Rating: IP68

• Sensor Material: POM housing with sapphire optical window

• Cable Length: 5 meters standard (customizable)

Applications:

• Industrial and municipal wastewater treatment

• River and surface water quality monitoring

• Process water control

• Environmental compliance and pollution tracking

• Aquaculture systems
