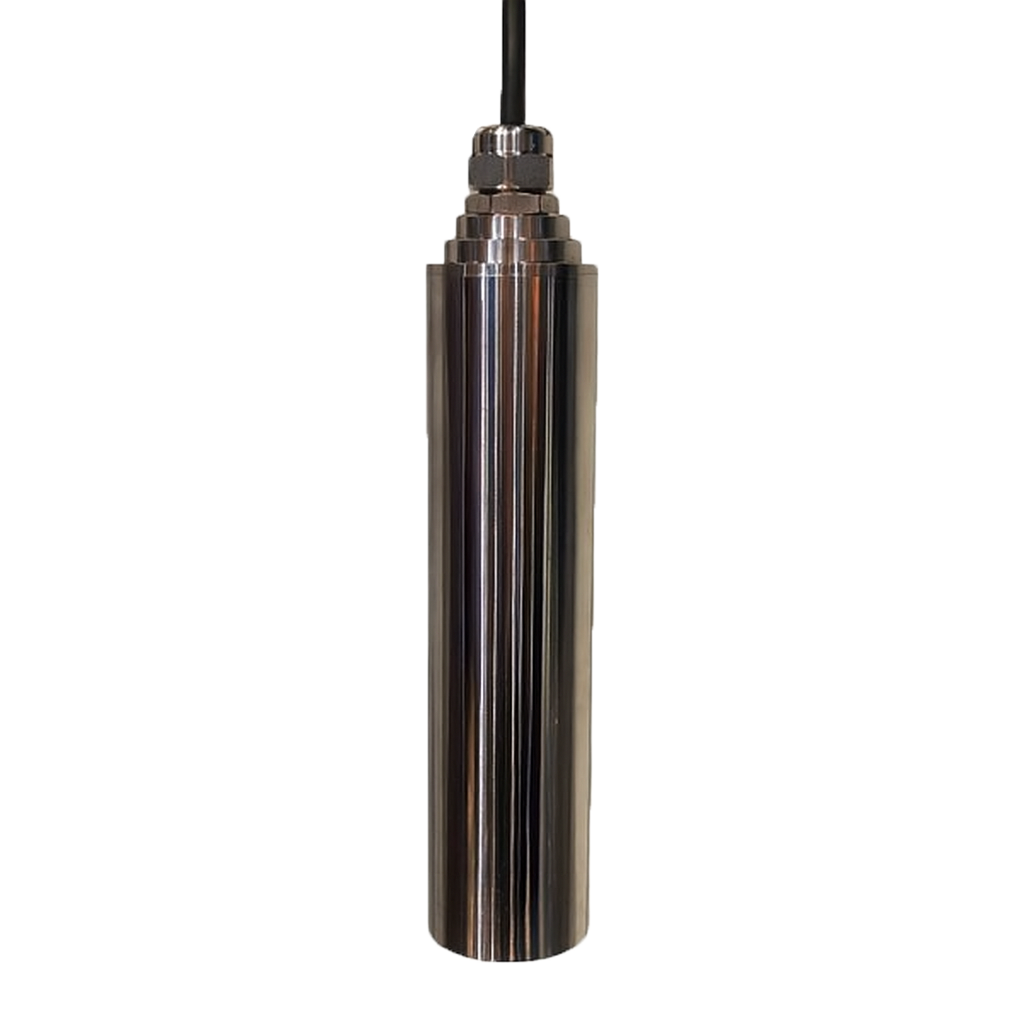

PAH Sensor

Description

The PAHs Sensor utilizes advanced UV fluorescence technology to detect polycyclic aromatic hydrocarbons in water with high sensitivity and precision. Designed for real-time monitoring, it offers rapid response, strong anti-interference performance, and seamless integration into industrial and environmental monitoring systems via MODBUS communication.

Key Features:

• UV fluorescence detection for accurate PAH concentration monitoring

• No reagents required, minimizing maintenance and operational cost

• Digital RS-485 output with MODBUS RTU protocol

• Fast response time with high sensitivity

• Rugged, waterproof design for submersible applications (IP68)

Technical Specifications:

• Measurement Range: 0–200 μg/L (customizable)

• Detection Limit: 0.01 μg/L

• Accuracy: ±3% of reading

• Resolution: 0.01 μg/L

• Response Time: ≤30 seconds

• Temperature Range: 0–50°C

• Output Signal: RS-485, MODBUS RTU

• Power Supply: DC 5–12V, <50mA

• Protection Rating: IP68

• Housing Material: Titanium or SS316 + POM

• Cable Length: 5 meters standard (custom lengths available)

Applications:

• Environmental water quality monitoring

• Industrial wastewater discharge control

• Oil and gas industry

• Port and marine pollution monitoring

• Research and compliance testing
